The purpose of this project was to design a braking system for bikes to store energy from braking, and to reuse the energy as the bike restarts. The team used spring to store and release energy, and integrated a clutch into the system as a switch. The concept was verified on paper, and eventually modeled by using SOLIDWORKS. My involvement with the project included drawing the sketch, modeling all the components and producing the drawing of the regenerative braking system.
Exploded View
Drawing of the Design
Section View

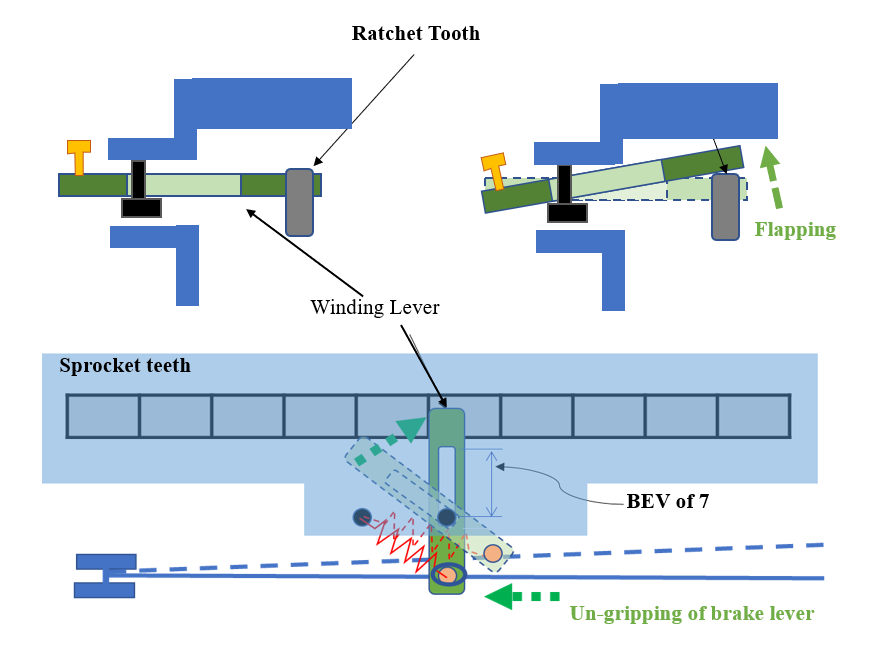

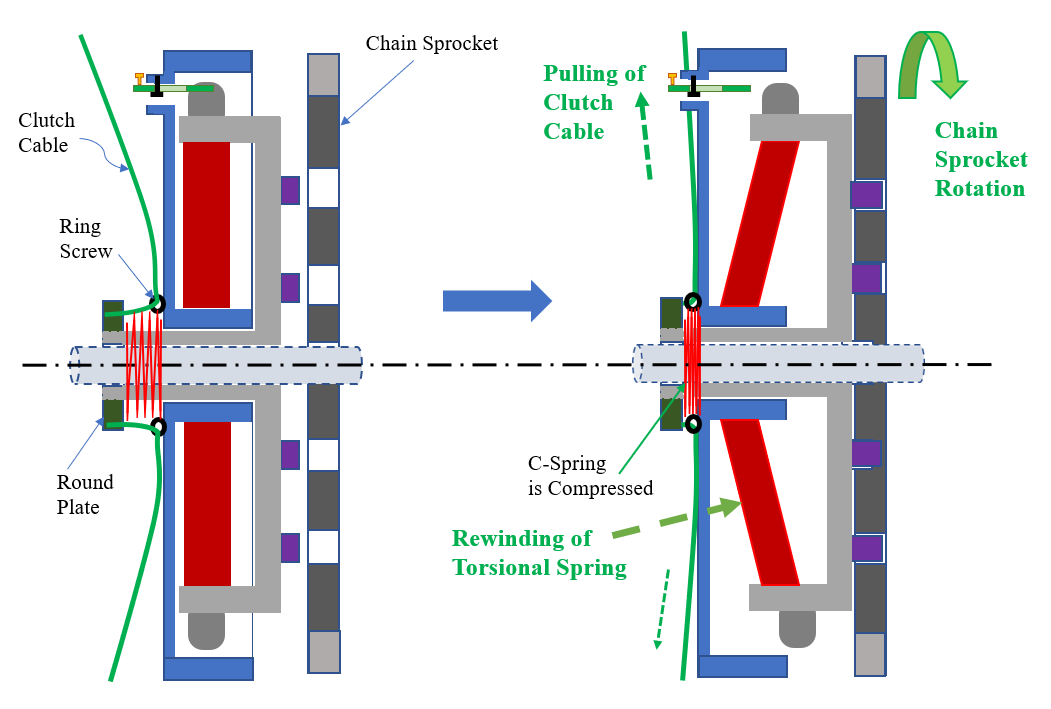

Mechanical Principle

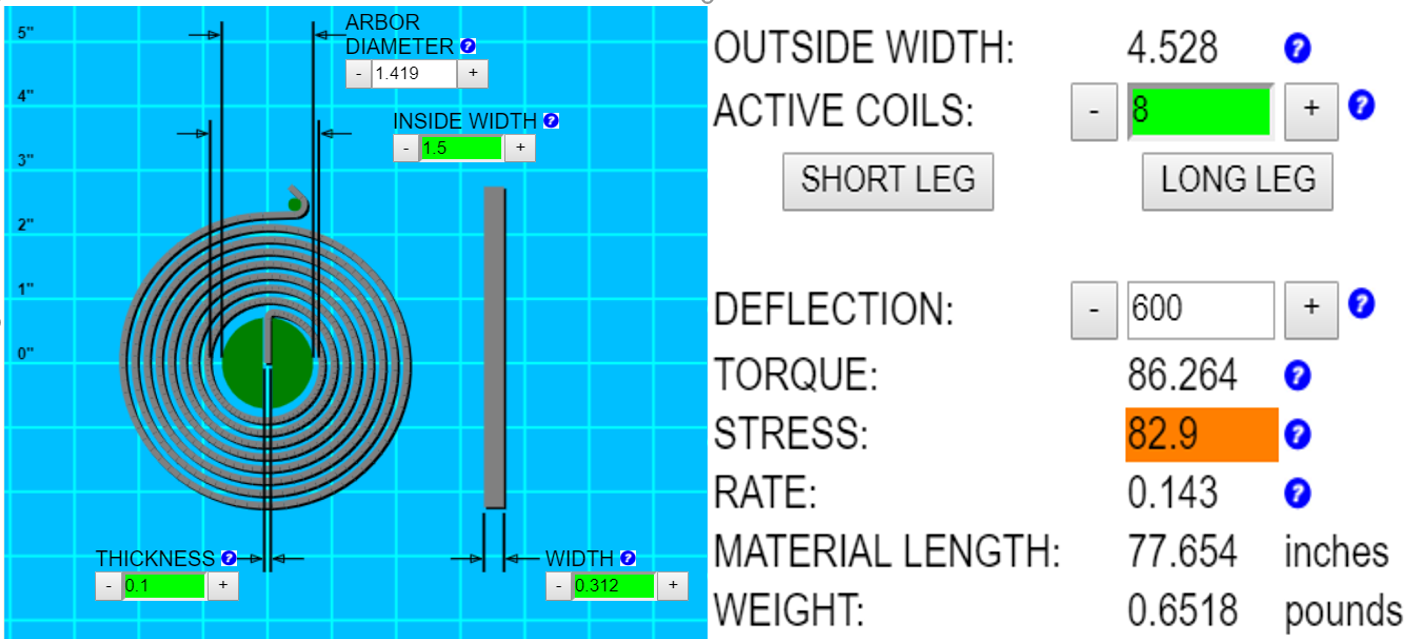

Mechanical Principle of the Spring
